Location George Town, Cayman Islands

2010 Custom Passenger Excursion by RTMC Available

USD$1,100,000

2010 Custom Passenger Excursion by RTMC

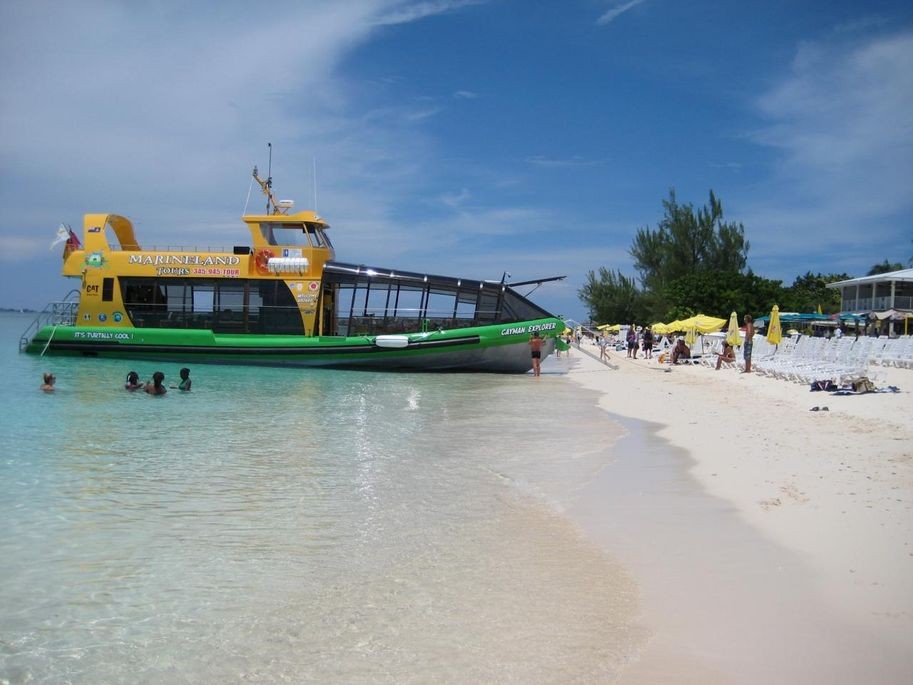

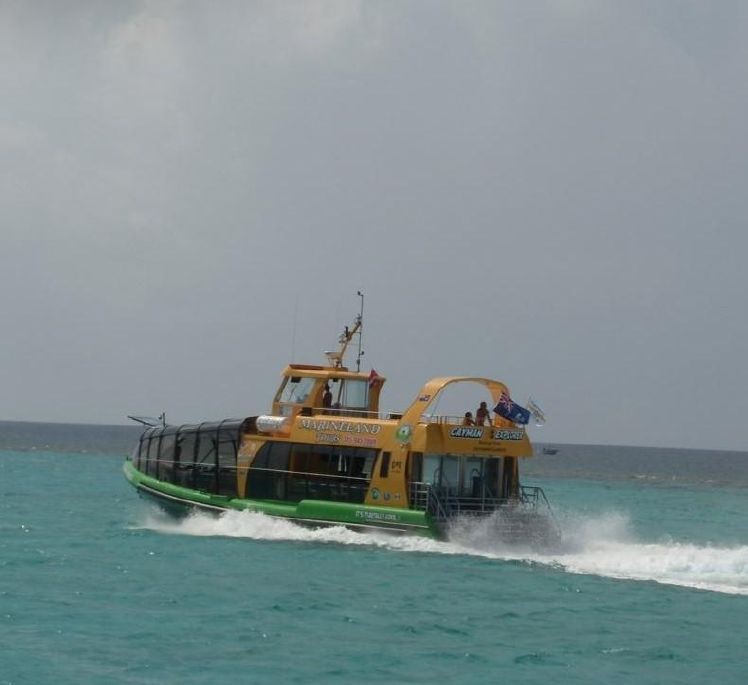

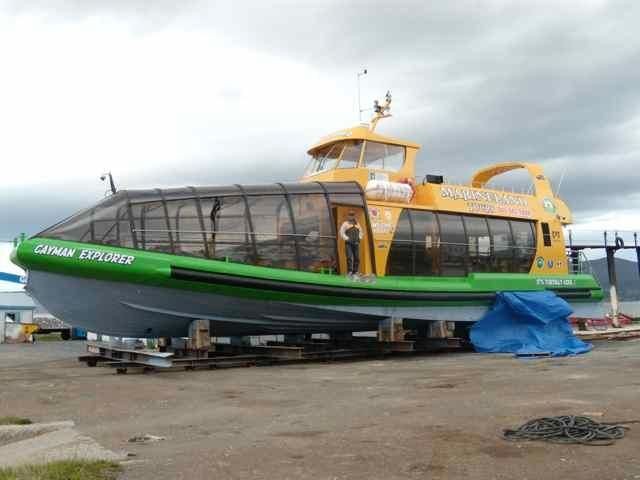

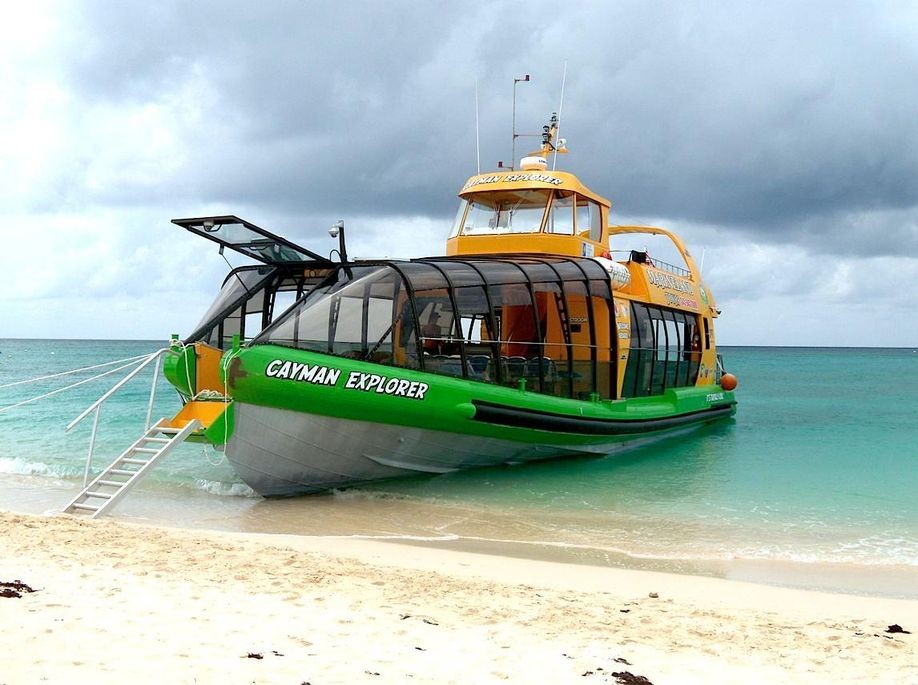

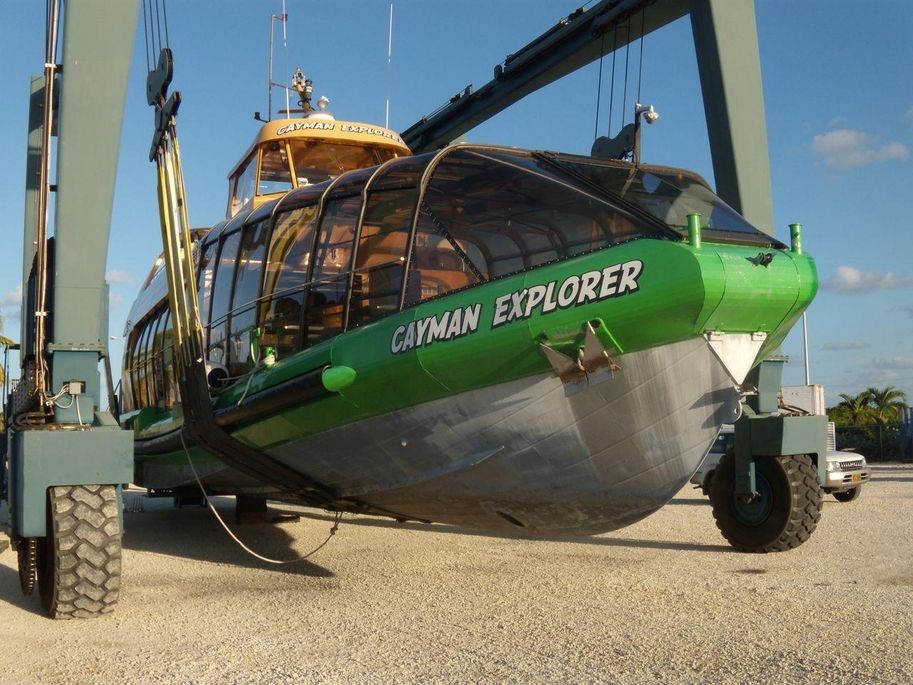

Cayman Explorer Deluxe is fabulous 150 passenger excursion vessel specifically designed for Cayman’s Stingray City Sandbar tours, which require a shallow draft, swift vessel with significant passenger capacity.  It is perfect for any type of passenger excursion, with or without in-water activity.  This custom designed, space-age-type boat is 20% lighter and 25% more fuel efficient than any comparable boat of its class or size. The Cayman Explorer has a unique custom stern platform that descends into the water, giving exceptionally easy access to the water and back on to the boat. The vessel has a full-service bar on board, two heads and an upper sun deck, just to name a few of the amenities.  See full specs for further details

Hull Material : Aluminum
Year : 2010
Model : Passenger Excursion By RTMC
Length : 69 ft
Brand : Custom
Boat Fuel Type : Diesel
Boat Category : Passenger

Engine 1

Engine MakeCaterpillar
Engine ModelC-12 ACERT
Engine Year2010
Total Power500hp
Engine TypeInboard
Drive TypeJet Drive
Fuel TypeDiesel

Engine 2

Engine MakeCaterpillar
Engine ModelC-12 ACERT
Engine Year2010
Total Power500hp
Engine Hours500
Engine TypeInboard
Drive TypeJet Drive
Fuel TypeDiesel

Engine 3

Engine MakeCaterpillar
Engine ModelC-12 ACERT
Engine Year2010
Total Power500hp
Engine TypeInboard
Drive TypeJet Drive
Fuel TypeDiesel

Speed & Distance

Cruising Speed24kn
Max Speed29kn

Dimensions

Length Overall69ft
Max Draft2.5ft
Beam19.67ft

Miscellaneous

Liferaft Capacity125
Electrical Circuit110V

Tanks

Fresh Water Tank150 Gal (Aluminum)
Fuel Tank500 Gal (Aluminum)
Holding Tank

Accommodations

Heads2

Specifications - General

  • Boat Type: Passenger boat type Exploratory P-35 up to 150 passengers.
  • Certifications: Transport Canada and Bureau Veritas Certified.
  • Length: 69 feet overall.
  • Width: 19' 8" overall.
  • Draft: 2’ 6”
  • Total Seats: 125 seats, Hard PVC, colored, folding type, cushion. 50 Seats on top deck.
  • Power: 3 X Caterpillar C 12- ACERT diesel engines. 500 hp each.

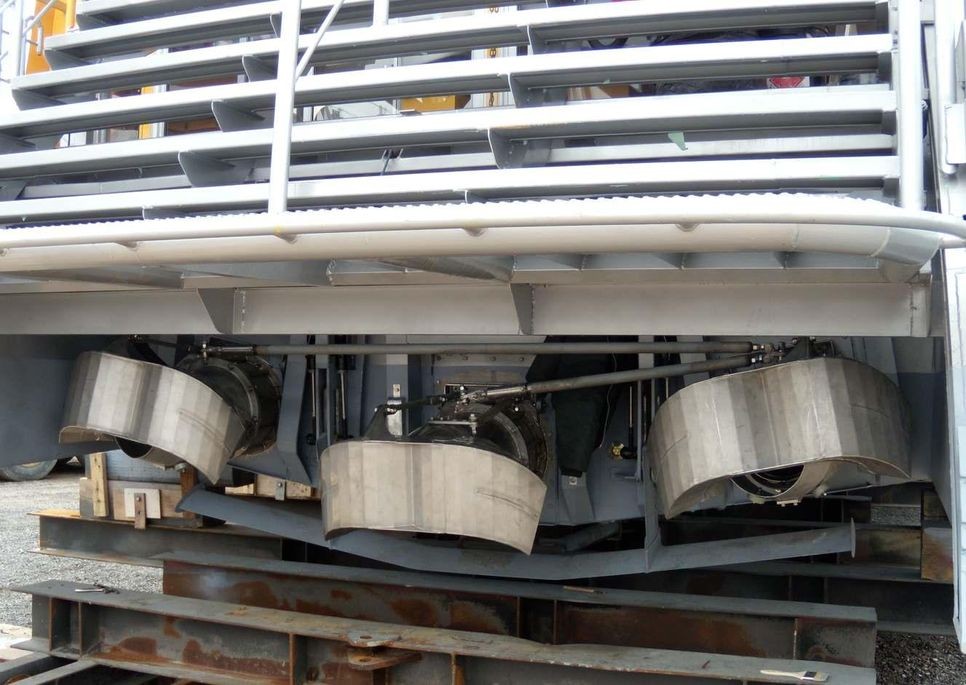

  • Propulsion: 3 x Alpha Power Jets model# 420. Bow thruster included.
  • Speed: Approximately 23 - 25 knots with 150 passengers. Max speed approx. 29 knots.
  • Steering: Hydraulic.
  • Fuel Tank: 5OO Gallons.
  • Bilge pumps: 9 immersed bilge pumps (2 per compartment + 1 for bulkhead.)
  • Hull/Deck: Aluminum Fabrilite extruded ,marine grade.
  • Second Deck: Aft, open sky.
  • Aluminum Tube: Aluminum Fabrilite extruded D shape. Marine grade.
  • Glass Top: Lexan, all vertical sliding windows. The stern covered with Lexan opening windows.
  • Doors: Port & Starboard doors at mid-ship and door at the bow. Sliding doors on stern and wheelhouse.
  • Wheelhouse: Raised, self draining cockpit, windscreen wiper, pilot seat.
  • Instrumentation: Tachometer, gauges, warning lights, bilge pumps controls.
  • Electrical Equipment: 12 Volts DC, Secured in locker, TEN batteries and ONE battery for vhf radio. 7kw Inverter.
  • Navigation Equipment: Navigation Lights, VHF radio - Radar 20 miles. GPS, Depth finder, Searchlight.
  • Heads: Two units, One wheelchair accessible. Holding tank
  • Engine Room: Water tight. Fire extinguisher cylinders- fire ports; Co2 Fire fighting system. Fire detection system & alarms ; Engine room sound insulation. 2 x exhaust fans thermostat controlled. 100 foot long firehose attached to jet drive intake.
  • Sound System: Hi- FI sound system with 84 speakers. 2 x LCD color televisions. DVD/CD Player.
  • Electrical Equipment: 110 Volts-220 volts on Inverters; Shore power. I 0 x waterproof security cameras/DVR.

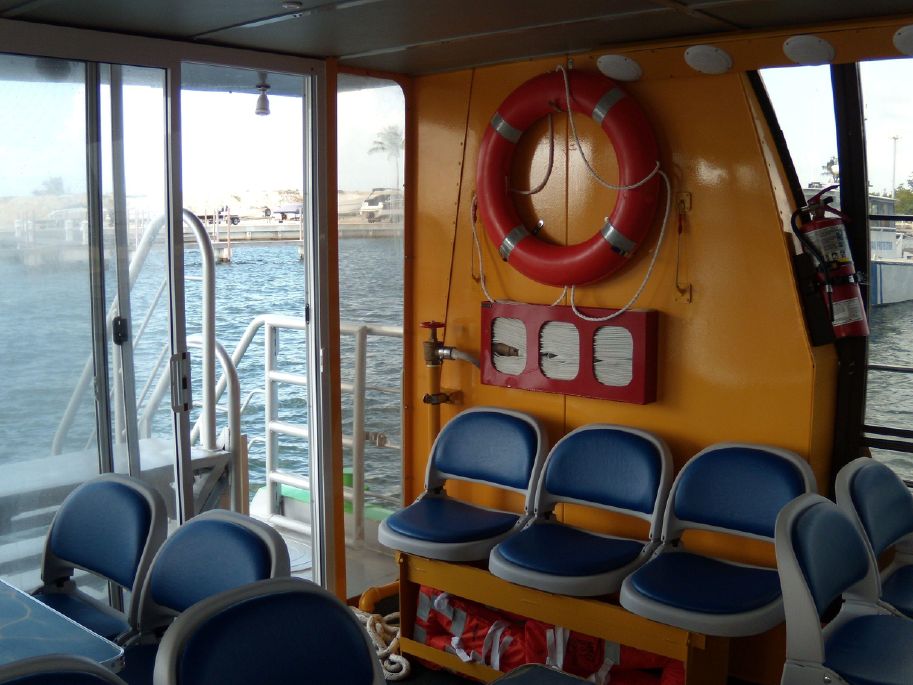

  • Safety Equipment: 150 Lifejackets placed under each seat, 2 x Floating Liferafts for 125 people, 4 x Life Buoy Rings, 2 x Sound Signaling Devices, 12 x Handheld Flares, 6 x Parachute Flares, 3 x Orange Smoke Signals, 2 x Waterproof Rash lights, 2 x First Aid Kit.

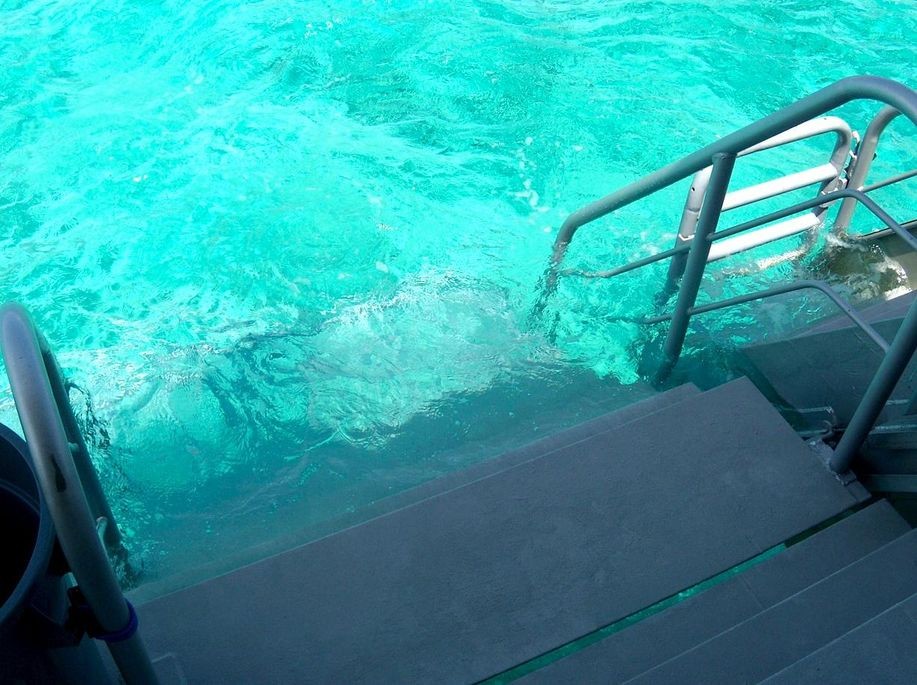

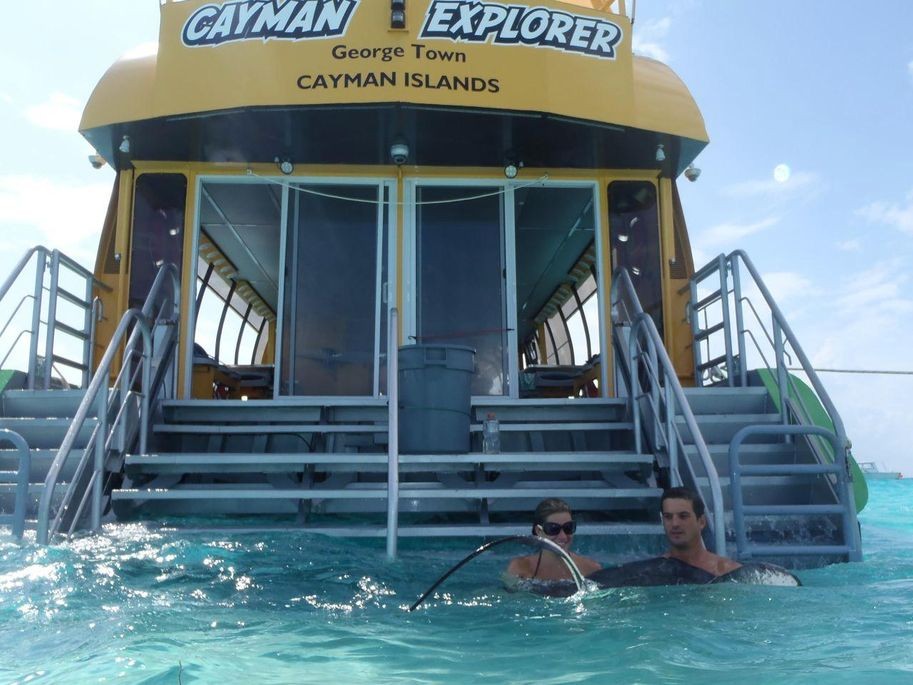

  • Ladders: 2 at the Stern and one at the Bow. Hydraulic Platform stairs on stern.
  • Anchors & Rode: 300 feet of rode and chain. 1 x 60 lb bow anchor, 2 x 30 lb stern anchors.
  • Diving Platforms: 2 diving platforms on stern at the end collars, folding type ladder, RTMC standard design. 2 x Fresh water showers, Total 150 gallons water tank . Custom Water outlet for shower.

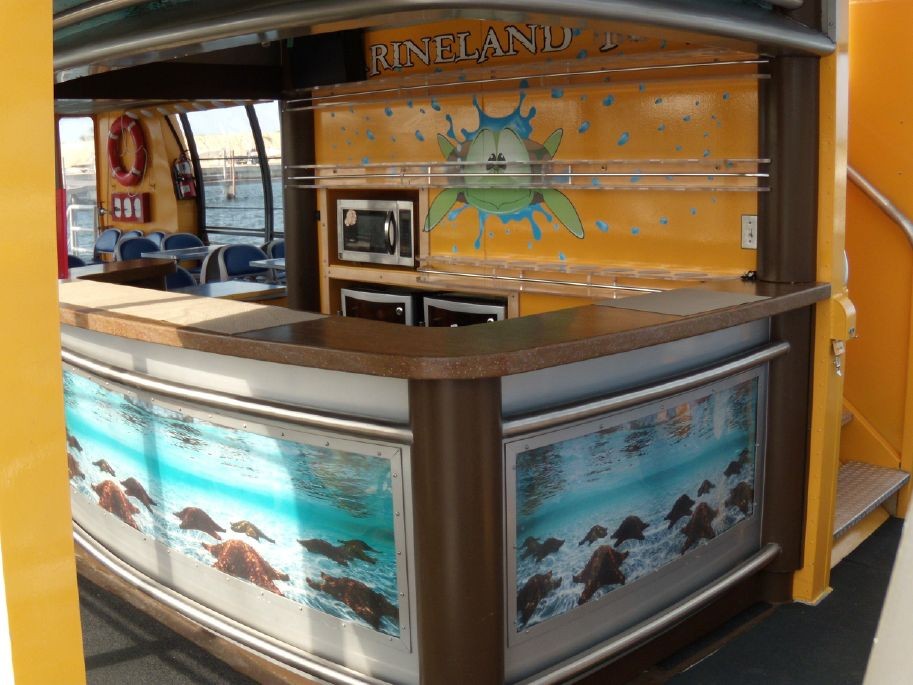

  • Service Area: Full service Bar with fridge/freezer, microwave, sink etc.

Seating

150 MAXIMUM PASSENGER CAPACITY

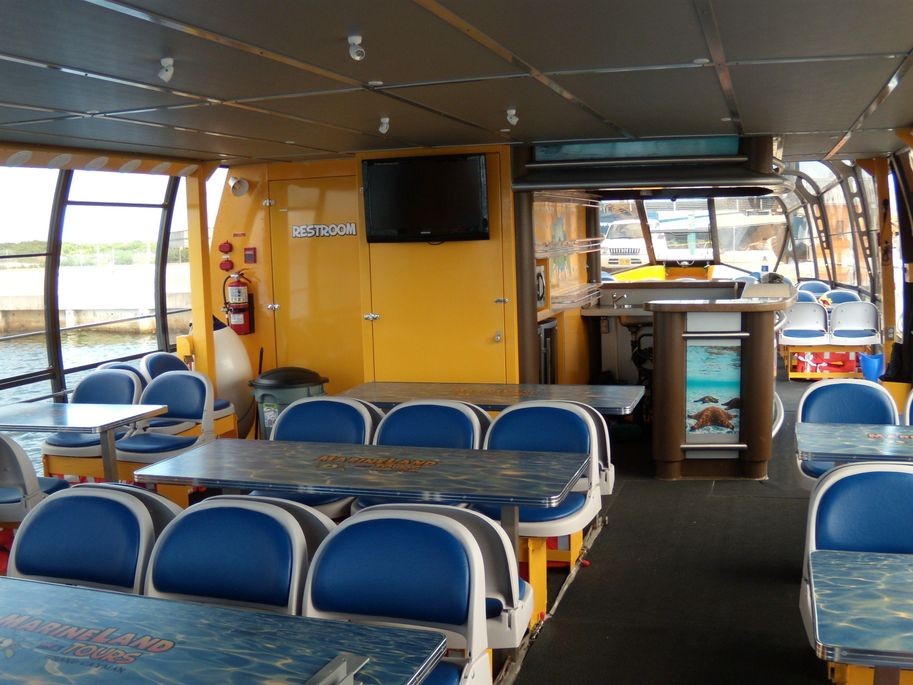

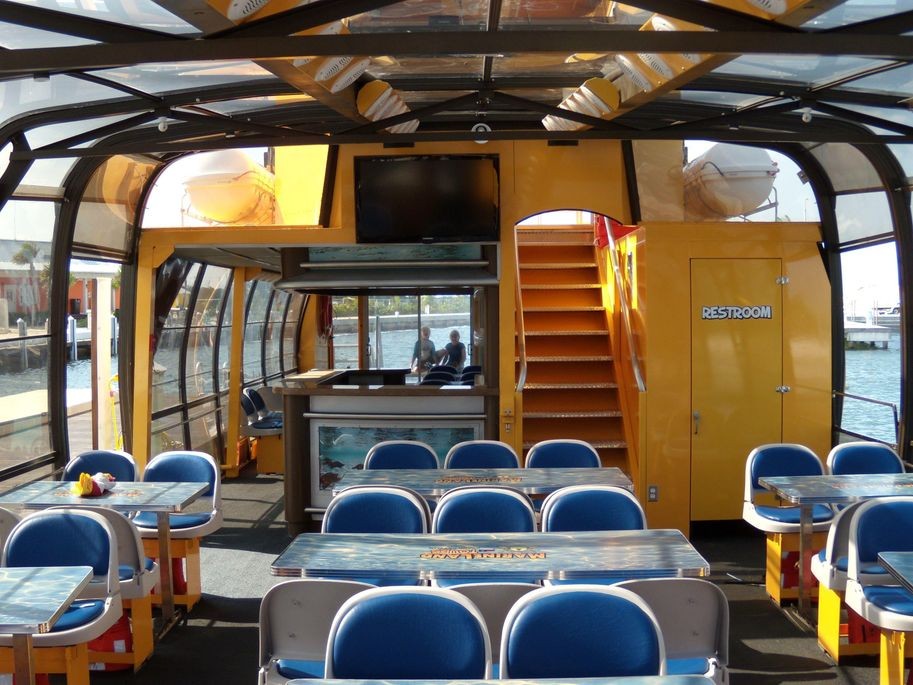

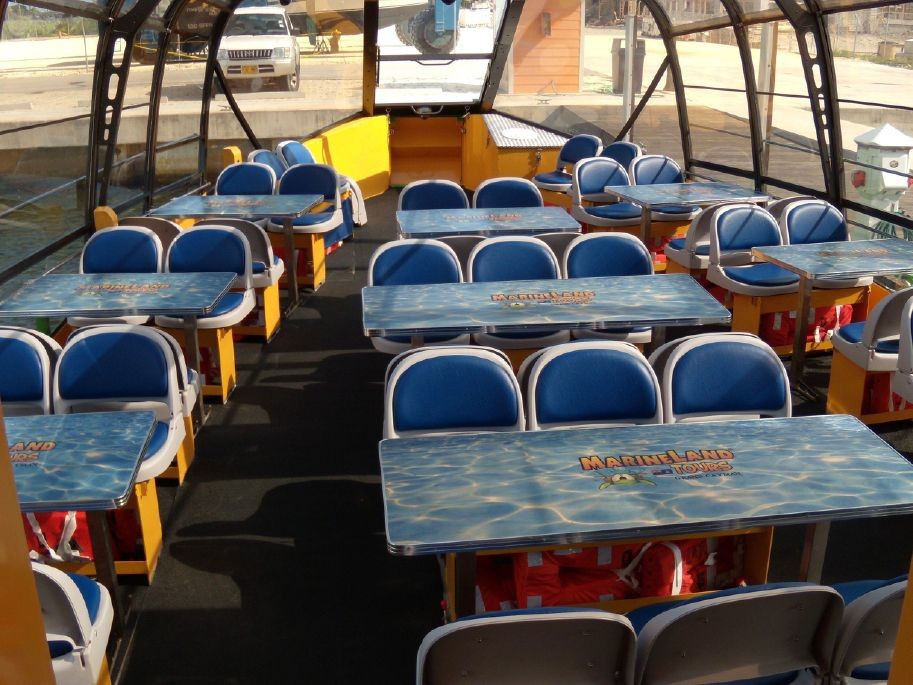

The Cayman Explorer is approved by Transport Canada for Seating up to 150 passengers. All seats and tables can be removed and configured to different layouts very easily. Seats can be heed forward , to the side or facing to the back depending on the type of tour being offered. For tours to stingray City, seating will be restricted to only I 00 passengers. Seats are constructed of hard PVC, and are the colored, folding type with comfortable cushions. There is a full service bar with fridge, freezer etc. Lifejackets are located under the seats.

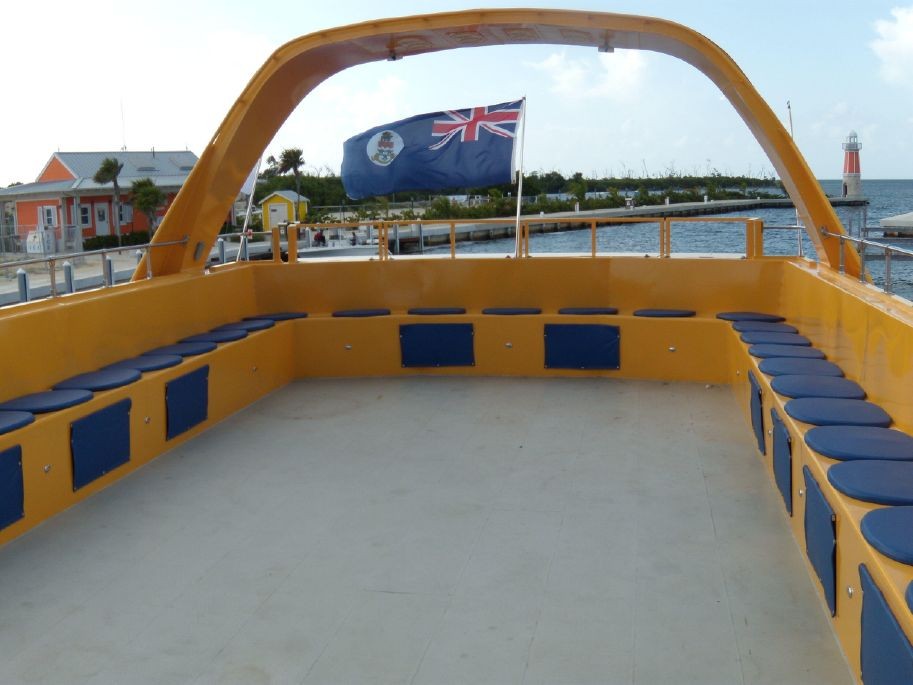

Top Deck approved for 50 Passengers

Disclaimer

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.

Speed & Distance
  • Cruising Speed : 24kn
  • Max Speed : 29kn
Dimensions
  • Length Overall : 69ft
  • Max Draft : 2.5ft
  • Beam : 19.67ft
Miscellaneous
  • Electrical Circuit : 110V
Tanks
  • Fresh Water Tank : 150 Gal (Aluminum)
  • Fuel Tank : 500 Gal (Aluminum)
Accommodations
  • Heads : 2
